Create Lambda Function

In this step we will learn how to create a Lambda function to work with our DynamoDb and be the logic that operate our lex bot

The architecture overview after you complete this step will be as follows:

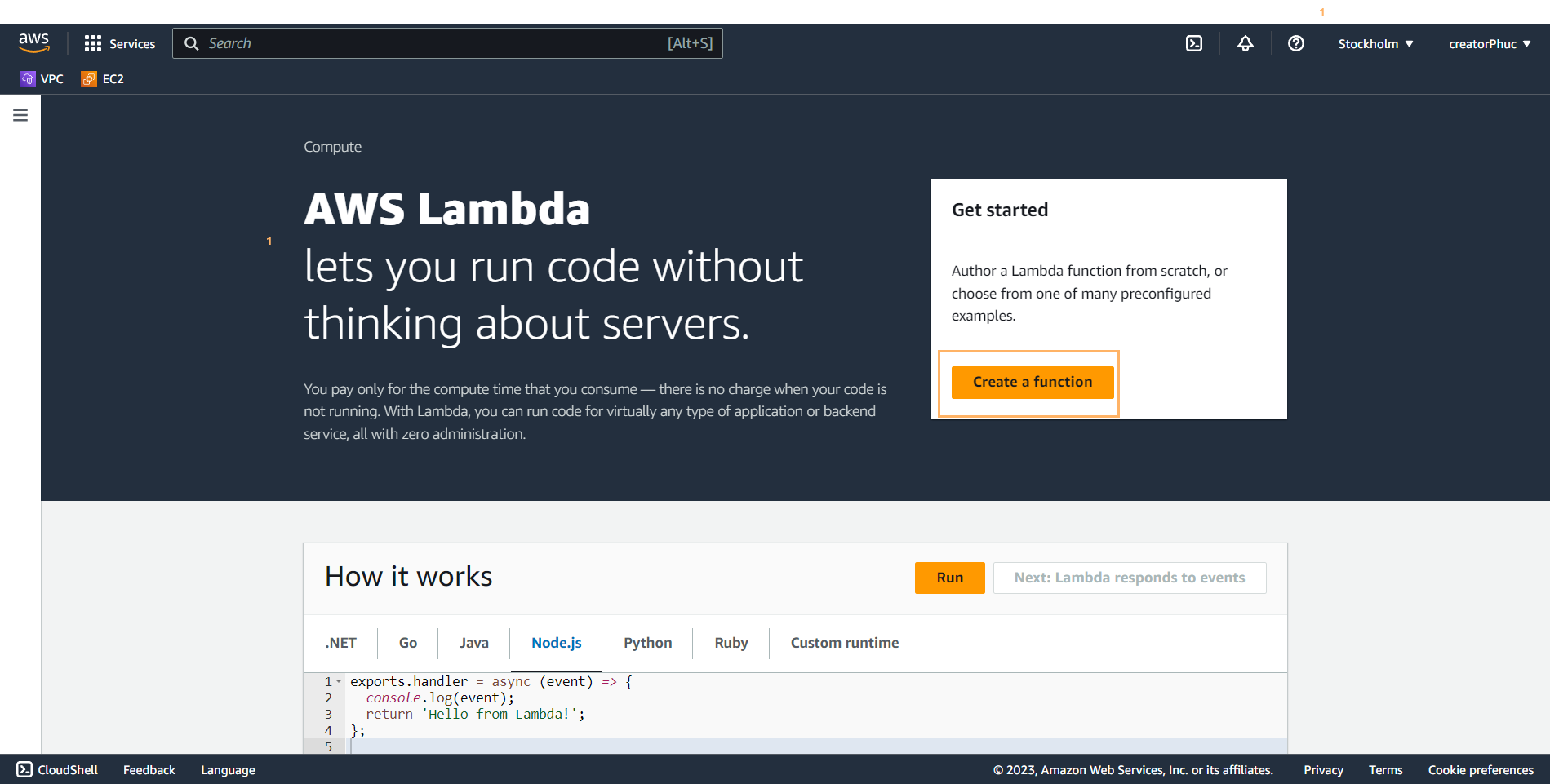

  1. Go to Lambda Service Interface
  2. click on create a function lambda-1

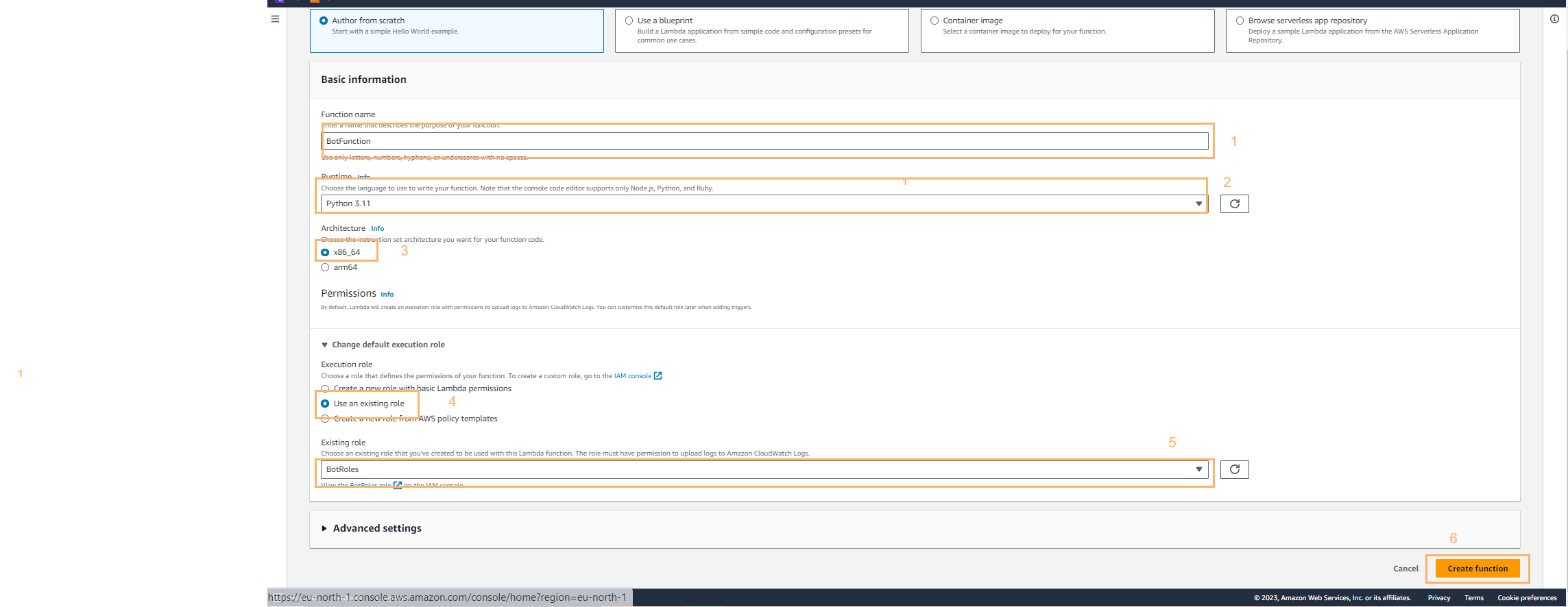

  3. in the create function page
  • set the Function name to BotFunction
  • set the Runtime to Python 3.11
  • choose the Architecture to be x86_64
  • change the default execution role to Used an existing role
  • in the existing role choose the BotRoles that we have created
  • then click Create Function lambda-2

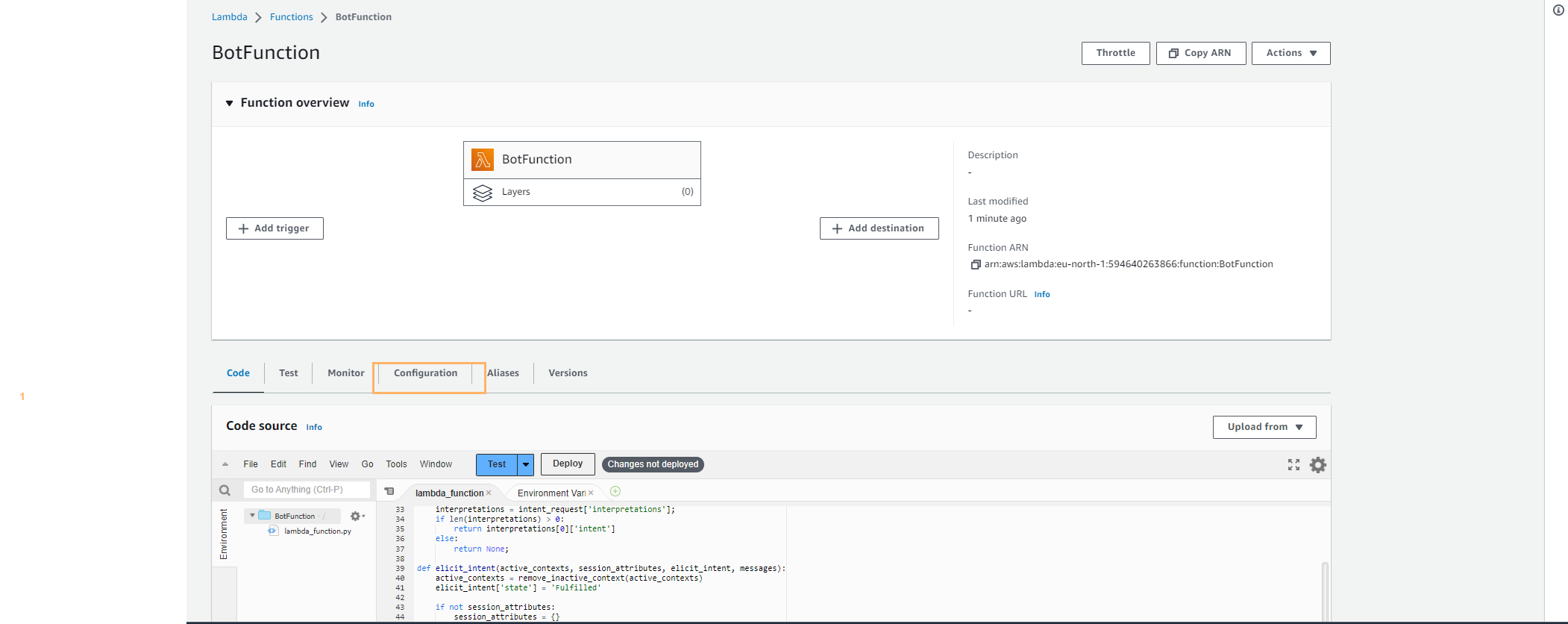

  1. in the BotFunction click on configuration lambda-3

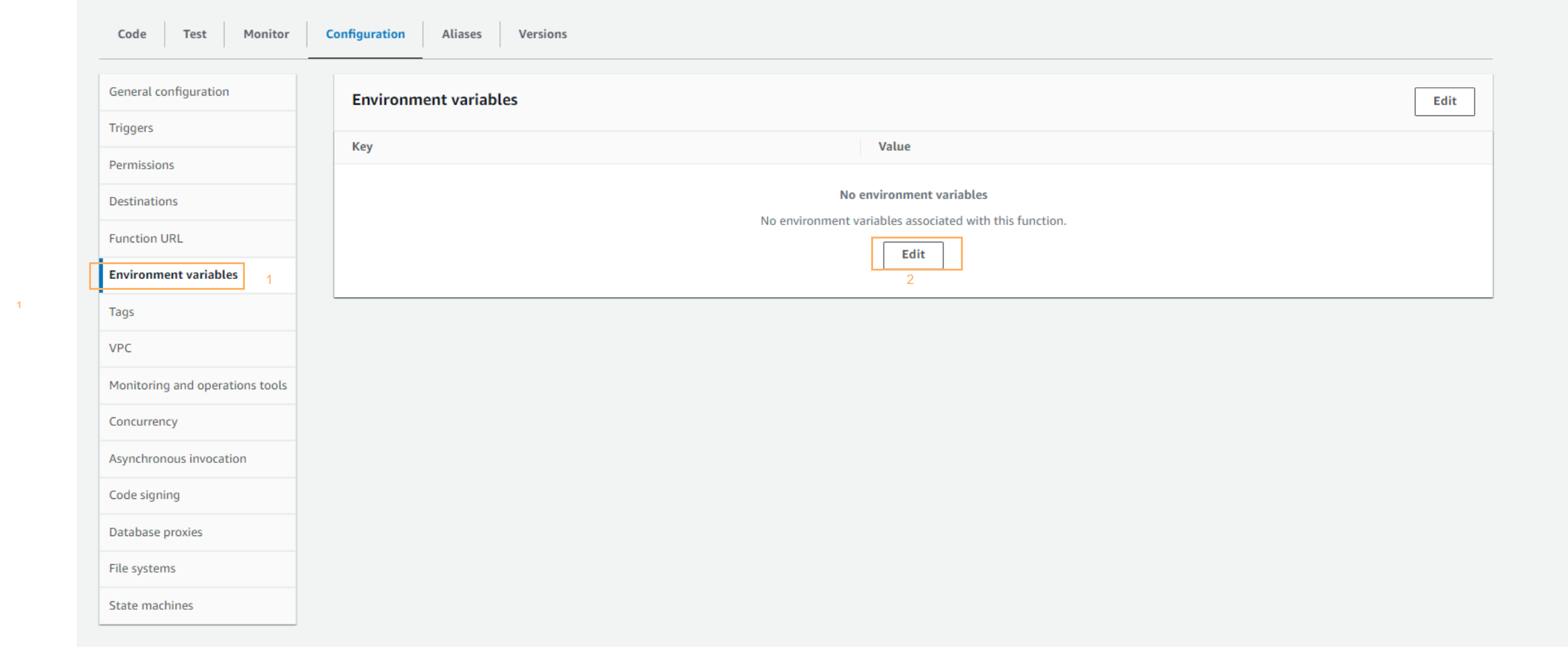

  2. on the configuration tab :
  • click on Environment variables
  • then click on Edit lambda-4

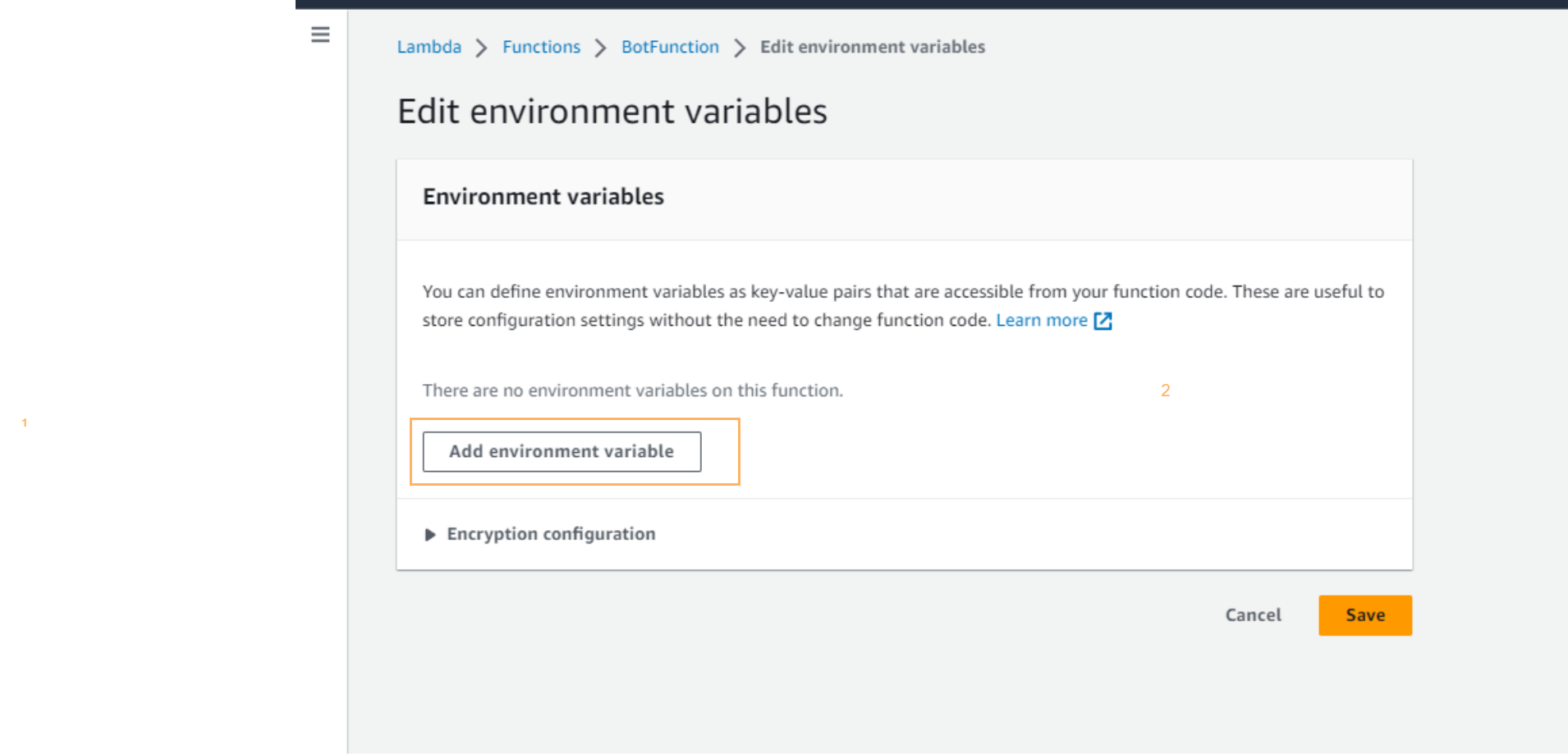

  1. on the edit tab click on Add Environment variables lambda-5

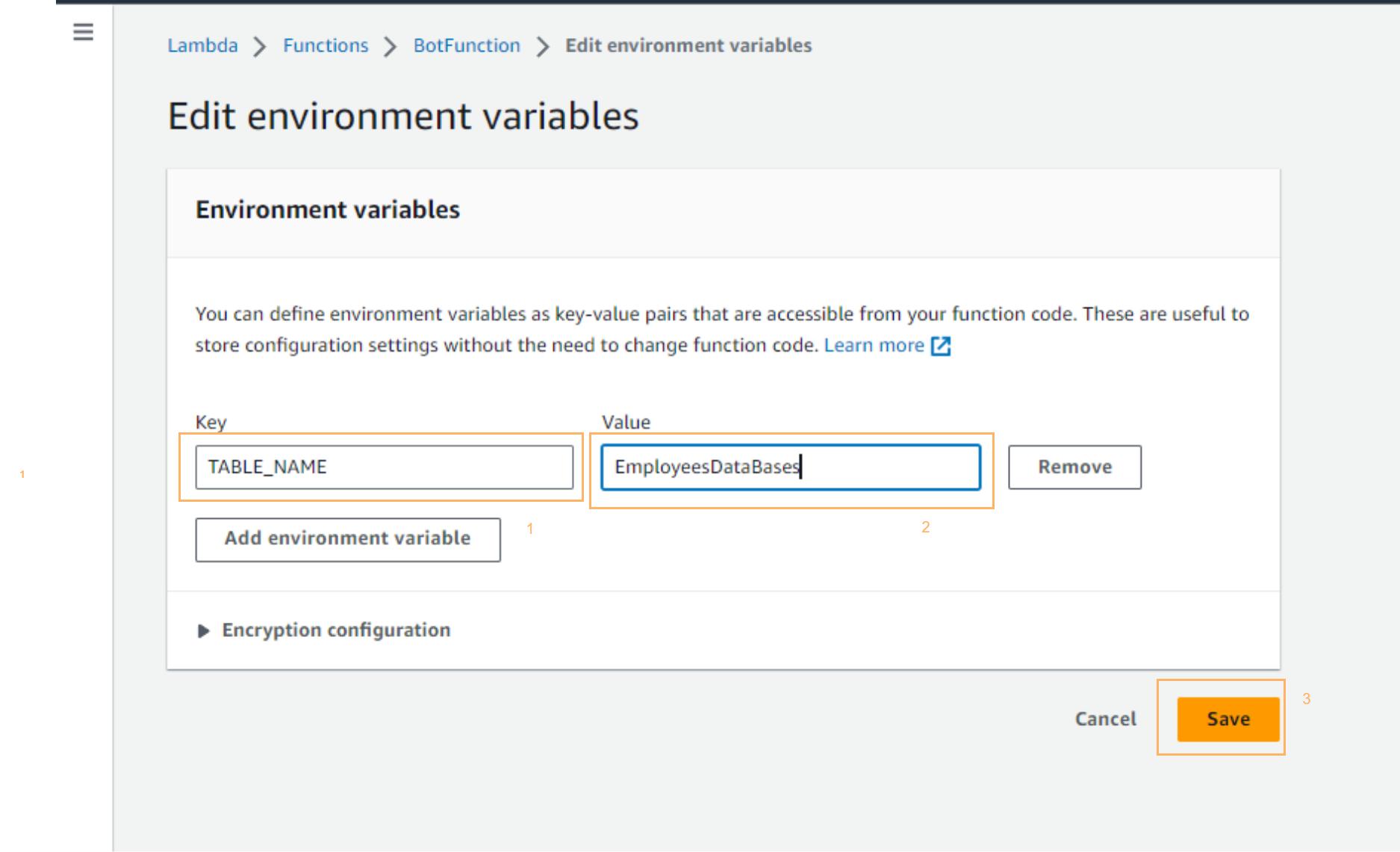

  2. edit the key and value to connect the databases with the Lambda function :
  • for the environment add key TABLE_NAME
  • for the value add EmployeesDataBases
  • then click save lambda-7

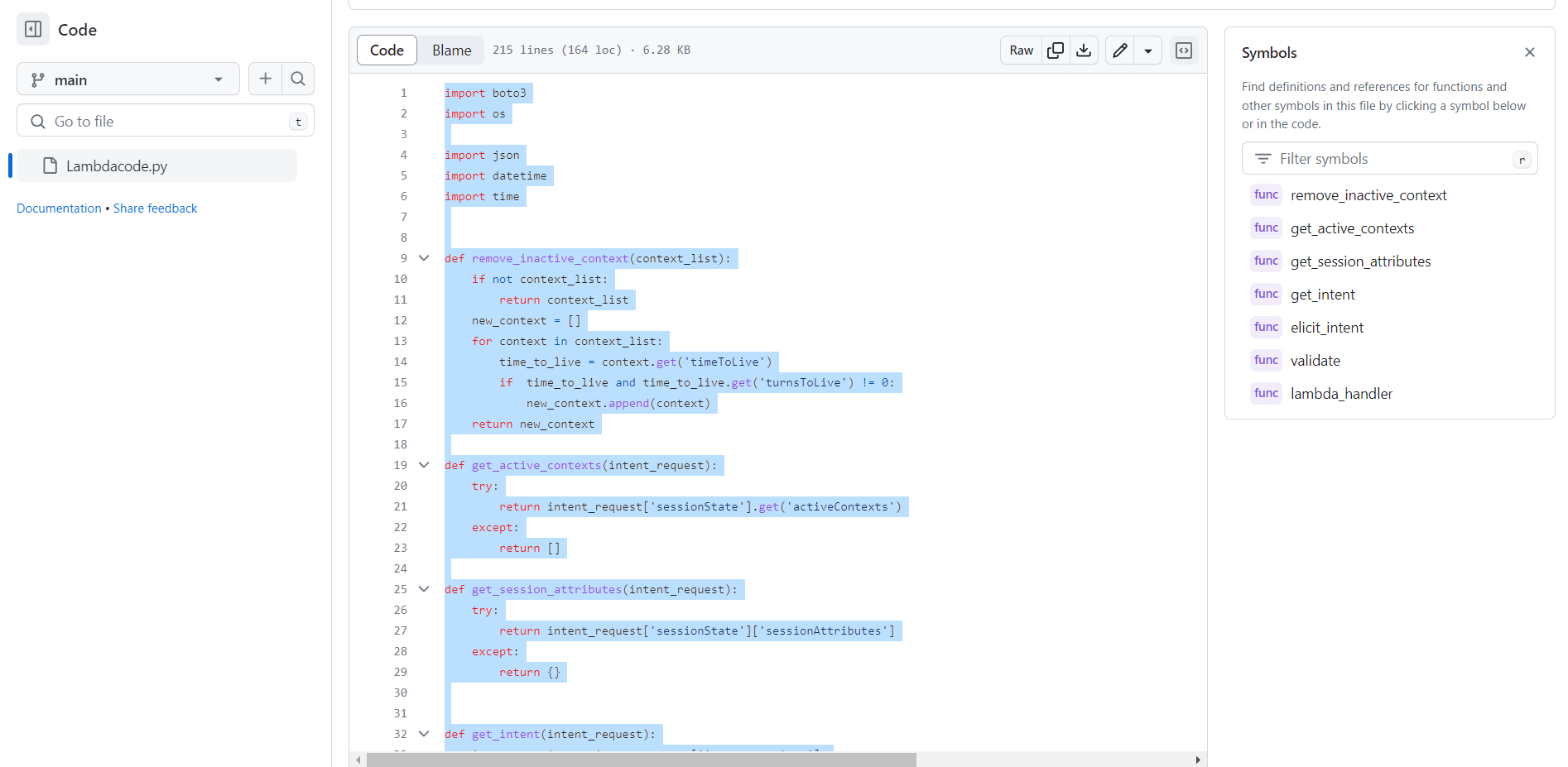

  1. get the code for Lambda Function :
  • go to this github link GITHUB
  • then click ctrl + A to copy all the code lambda-7
  • Paste the code into the code tab in BotFunction

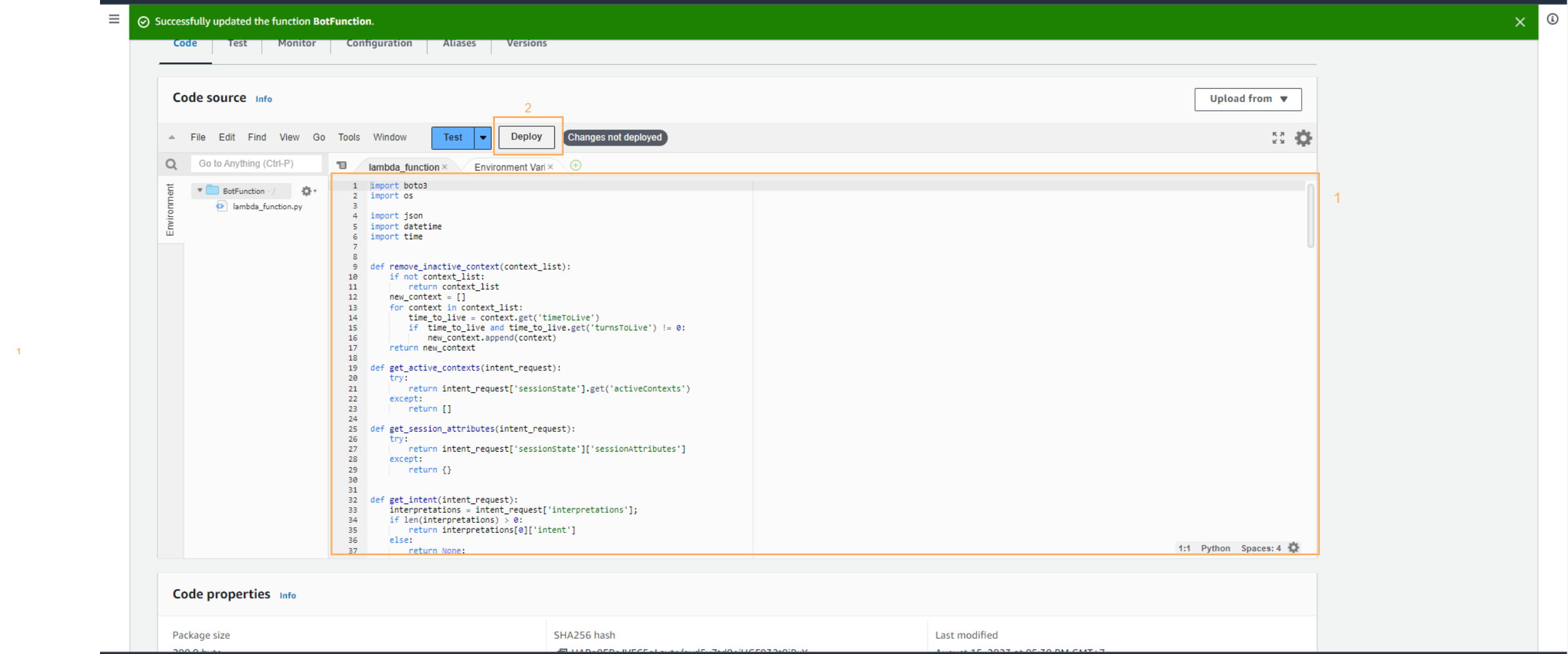

  • then click Deploy lambda-7

Now we are done with the preparation for lex bot databases and logic now we will move on to configuring the lex bot
